Sensibly equivalent¶ to:

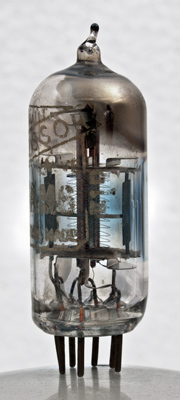

This exhibit from Cossor features white lettering. Our other Cossor version of the 6AM6 has red lettering.
The 6AM6 was almost the universal amplifier pentode of the post war era, many manufacturers made versions of this standard valve.
The 6AM6 is a high gain, high impedance, variable μ, screened pentode. It could be used from AF to VHF up to about 200 MHz and was found in large numbers in most types of electronic equipment. In radio it was used for RF and IF amplification, for oscillators and frequency multipliers.
The electrodes fill the width of the valve. The anode is formed by two rectangular plates at either side of the valve. The other two sides of the box being completely open. All three grids can be clearly seen and all three grids have separate pins, unlike so many valves that strap the suppressor grid to cathode internally. The cathode is a flattened tube, g1 is closely wound and very near the cathode. The screen grid, again made of thin wire, is a flat sided helix. The final grid is placed halfway between cathode and anode and is of a much looser pitch than the other grids.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
References: Data-sheet, 1043 & 1040 Type 6AM6 was first introduced in 1947.
Absolute Maximum Operating Conditions¶
Updated February 19, 2014. shape:thin.glass.tube construction:all.glass type:pentode age:1940.1950 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k pin:3.h pin:4.h pin:5.a pin:6.g3 pin:7.g2
