6AM6

Sensibly equivalent to:
5A/160H 5A/160K 6F12 8D3 CV138 EF91 HP6 PM07 SP6 Z77
See also:
EF91 - not the valve that won the war - Valves and their Habits - Valves for Bands III, IV & V - The EF91 and the Blue Band

Extras ▼



The 6AM6 is a high gain, high impedance, variable μ, screened pentode. It could be used from AF to VHF up to about 200 MHz and was found in large numbers in most types of electronic equipment. In radio it was used for RF and IF amplification, for oscillators and frequency multipliers. In television receivers it could be found in the IF amplifier as well as numerous other signal processing stages.

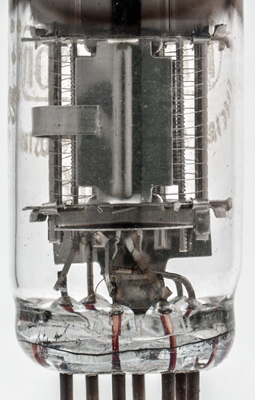

The anode is divided into two small plates either side of the central structure. The three wire grids pass flat in front of the anode plates.

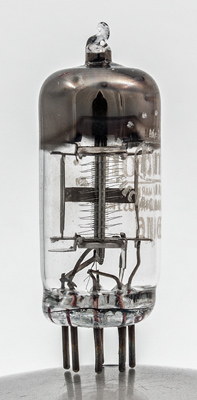

Looking into one side of the anode with the grids beyond. The anode is a composite and not stamped out of a single sheet.

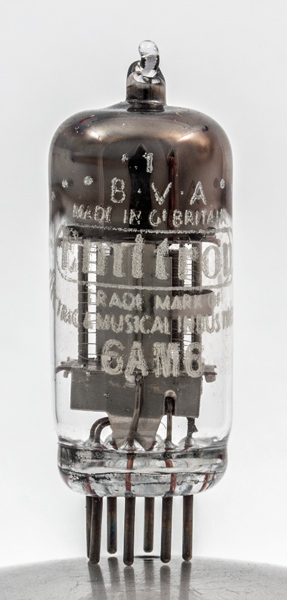

The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 44 mm tall.
References: Datasheet, 1043 & 1040 Type 6AM6 was first introduced in 1947.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g3
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
250
-2
10
2.5
1M
7.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 11, 2015.
