VR54

Sensibly equivalent^¶ to:

1638 ARDD5 CV1054 EB34 OM3

Extras ▼

RCA The Hammersmith Collection Other VR54 exhibits

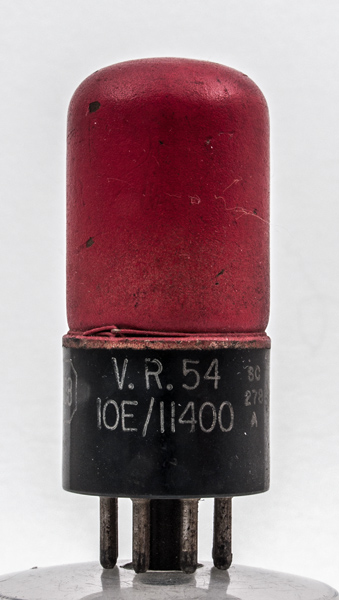

The VR54 is a signal double diode. Our exhibit is also marked with the old stores code of 10E/11400. The VR54 is equivalent to the commercial EB34.

The glass envelope has been screened with a red metallic paint..

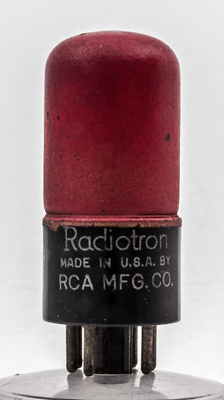

The RCA trade name of Radiotron ans Made in USA appear on the base.

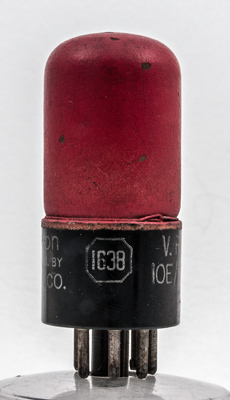

The base also carries the designation 1638.

The wide glass tube envelope is 28 mm in diameter, and excluding the IO base pins, is 62 mm tall.

References: Data-sheet, ⁴⁰⁰¹, ⁴⁰³⁹, ¹⁰⁴⁰, & ¹⁰⁴³. Type VR54 was first introduced in 1941. See also 1941 adverts.

Pin Connections

IO	1	2	3	4	5	6	7	8
	m	h	a(2)	k(2)	a(1)	nc	h	k(1)

Absolute Maximum Operating Conditions^¶

Diode	Vh	Ah	Va	mAa
	6.3	0.2	200	0.8

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated January 07, 2022.
