GZ32

Sensibly equivalent to:
52KU 5AQ4 5V4G 5Z4G CV593

Extras ▼

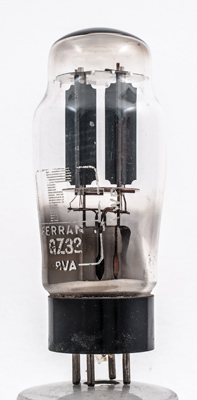

This exhibit, the GZ32, is a medium power full wave rectifier for general purpose use. It probably would have been used in audio power amplifiers or modest radio transmitters.
The maximum reservoir capacitor was 60 µF and the minimum series resistance to limit current was 150 Ohms.

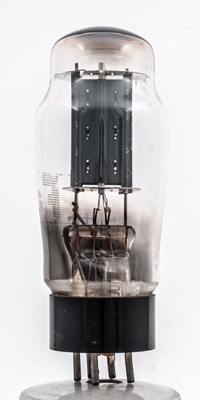

The twin rectifier sections. The cathode tube and heater wires can be seen below the lower mica disc. Note that this IO valve is without a locating spigot - it has been broken off.
One anode with side flanges either side of the central active area.
The classic envelope is 44 mm in diameter and, excluding the IO base pins, is 103 mm tall.
References: Datasheet & 1040. Type GZ32 was first introduced in 1946.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
-
a(2)
-
a(1)
-
h,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.3
500
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 28, 2017.
shape:classic construction:pinch type:rectifier.fw age:1940.1950 base:io heater:5.0v pins:8 pin:1.m pin:2.h pin:3.- pin:4.a(2) pin:5.- pin:6.a(1) pin:7.- pin:8.h.k
