6J5GT/G

Sensibly equivalent to:
CV1934 VT-94D

Extras ▼

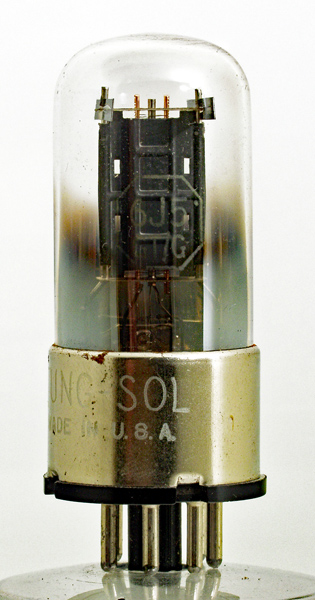

In this 6J5GT/G triode the electrode assembly is formed on a small glass pinch. The envelope is a glass tube the width of the octal base. The anode plates are formed to leave an oval cavity for the grid and cathode.
The museum has examples of this valve in the classic G version (6J5G)and the WWII metal envelopes (6J5).
See our article on the dissection of the metal version.
The electrical characteristics of each half of the 6SN7 match those of the 6J5.
The wide glass tube envelope is 29 mm diameter and excluding the IO base pins measures 67 mm long.
References: Data-sheet & 1040. Type 6J5GT/G was first introduced in 1940. See also 1940 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
nc
g1
nc
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-8
9
7.7K
2.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
