6J5G

Sensibly equivalent to:
CV1067 CV1932 L63 VR67
See also:
The Williamson Amplifier

Extras ▼

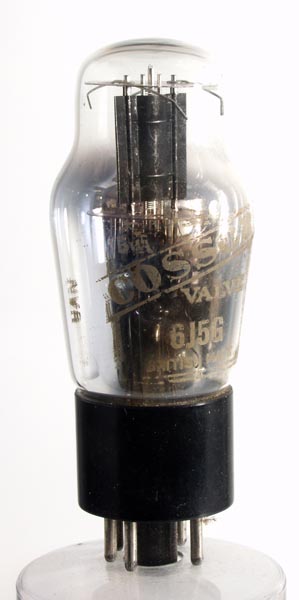

The 6J5G is a single triode is housed within a glass envelope. The electrode assembly is formed on a glass pinch in the traditional style. The anode plates are formed to leave an oval cavity for the grid and cathode.
This exhibit is the Cossor version of the design. We also have the Brimar version 6J5G, the later glass tubular version 6J5GT and the American metal version 6J5 within the museum.
The classic envelope is 36 mm in maximum diameter and excluding the IO base pins the valve is 85 mm long.
References: Datasheet, 1040 & 1043. Type 6J5G was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
nc
g1
nc
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-8
9
7.7K
2.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 27, 2013.
