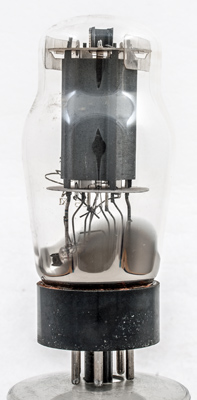

6P3P

Sensibly equivalent to:
6L6 CV1948 VT-115

Extras ▼



The 6P3P is the Chinese Type designation for the 6L6G. It is a larger more powerful audio beam tetrode than the 6V6 receiver type. Modern 21st Century valves are intended only for audio applications.

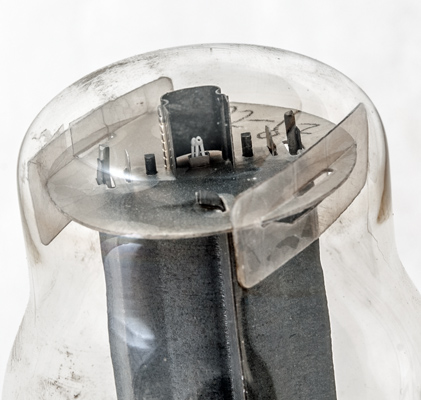

Looking along the grid axis the additional heat sinking is placed in the centre of the active anode faces.
The control grid wire can be seen as can the beam plates.

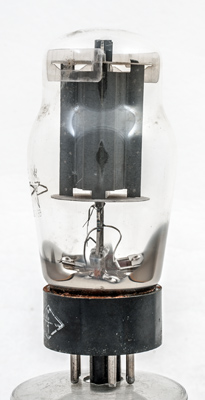

The cathode is a rectangular tube and the heater is a pair of hairpins.

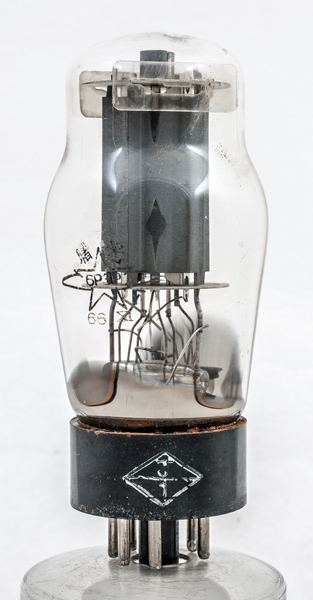

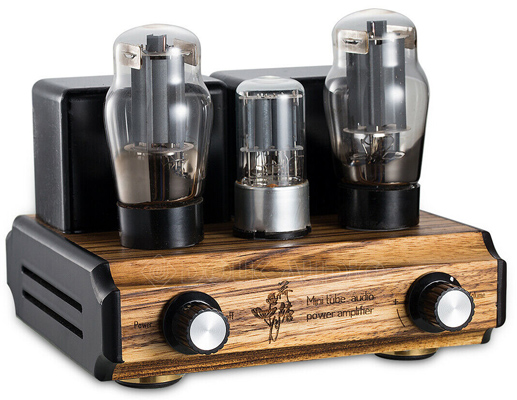

The 6P3P on the left is this exhibit. For details of the amplifier click here.
The classic envelope is 51 mm in diameter and, excluding the IO base pins, is 116 mm tall.
Reference: Datasheet. Type 6P3P was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k,bp



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.9
250
250
-14
72
2.5
33K
5.2
11W
15%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 28, 2019.
shape:classic construction:pinch type:beam.tetrode age:post 1975 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a pin:4.g2 pin:5.g1 pin:6.nc pin:7.h pin:8.k.bp
