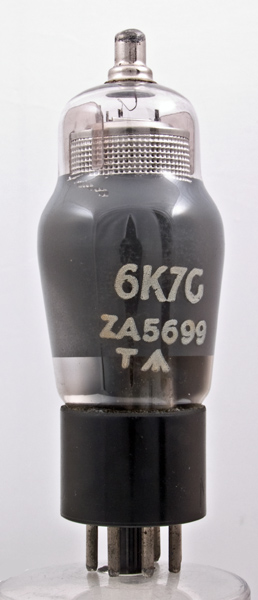

The 6K7G is a screened pentode and was designed for intermediate frequency amplifiers in superhet receivers. It is high impedance type allowing for a high Q in the tuned anode circuit.See also 6K7 metal envelope version and 6K7GT.The classic envelope is 37 mm in diameter and, excluding the IO base pins the valve is 97 mm tall.References: Data-sheet, 1040 & 1043. Type 6K7G was first introduced in 1936. See also 1936 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | tc | m | h | a | g2 | g3 | nc | h | k | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm |
| 6.3 | 0.3 | 250 | 125 | -3 | 10.5 | 2.6 | 0.6M | 1.65 |
|
