CV1067

Sensibly equivalent to:
6J5G CV1932 L63 POVT154 VR67
See also:
The Williamson Amplifier

Extras ▼

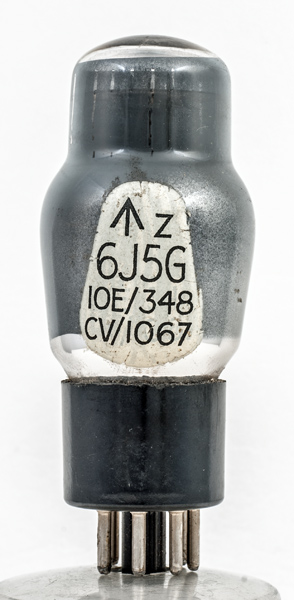

The CV1067 is a single triode is housed within a glass envelope. The electrode assembly is formed on a glass pinch in the traditional style. The anode plates are formed to leave an oval cavity for the grid and cathode.
The prototype for the CV specification was the M-OV L63 but clearly the 6J5G is a direct equivalent and this exhibit even carries the UK old stores codes. Prior to the CV register this specification was known as the VR67 by the RAF and POVT154 by the GPO for telephone service.

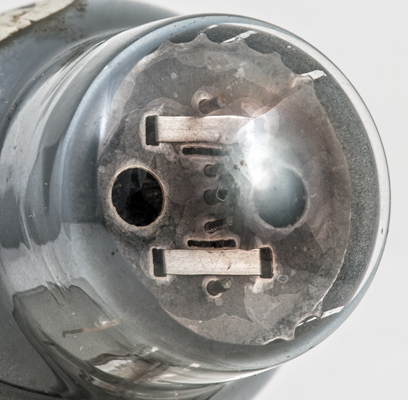

The top of the glass reveals a round cathode and supports that suggest a close wound control grid.
The classic envelope is 38 mm in maximum diameter and excluding the IO base pins the valve is 83 mm long.
References: Datasheet, 1040 & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
-
g1
-
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.3
250
-8.0
9.0
7,700
2.6
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 18, 2019.
