ECH35

Sensibly equivalent to:
ARTH2 BVA276 CV1347 CV1944 OM10 X147 X61M X61 X65
See also:
Mullard ECH35 Advert - Mullard Valves for Domestic Receivers Advert

Extras ▼



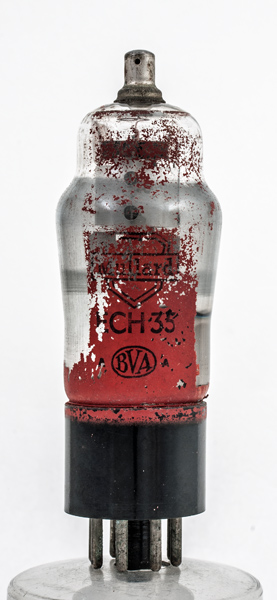

The ECH35 is a typical triode hexode frequency changer or mixer for broadcast applications. The exhibit has the Mullard red paint external metalisation and for maximum isolation of the signal input and output circuits the hexode control grid is taken to the top cap.
The CCH35 and ECH35 differ only in heater ratings. The CCH35 is for series heater connection on a 0.2 A chain across the mains. The ECH35 is for parallel heaters only.

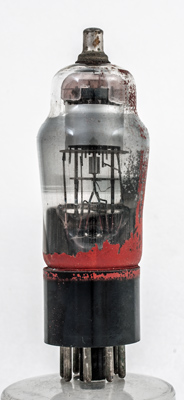

This exhibit earns a place in the museum because the metalising is flaking off and the insides can be seen. The hexode is at the top and in this image the grids are seen across the width of the image. The hexode control grid connects to the top cap and thus there are no connections to the lower ends of this grid.The triode is below the middle mica and the grid axis is at right angles to the hexode. The anode has wide side flanges and the control grid is wound on copper supports.
The classic envelope is 35 mm in diameter and, excluding the IO base pins, is 95 mm tall.
References: Data-sheet, 1040 & 1043. Type ECH35 was first introduced in 1940. See also 1940 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2,g4
g1(t),g3
a(t)
h
k
g1



Absolute Maximum Operating Conditions
Hexode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-2.0
3.0
3.0
1.3M
0.65



Absolute Maximum Operating Conditions
Triode
Va
mAa
100
3.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 03, 2019.
