L63

Sensibly equivalent to:
6C5 6J5G CV1067 CV1932 VR67 VT154
See also:
The Williamson Amplifier - CV1067 short entry

Extras ▼



The L63 is an octal based general purpose amplifier triode. It is a low impedance device and often used at audio frequencies.

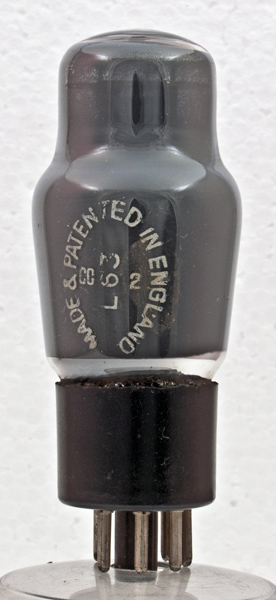

The exhibit carries no explicit branding but the shape and design of the lettering match the M-OV style a similar presentation can be seen on L63.
The classic envelope is 38 mm in diameter and, excluding the IO base pins, is 85 mm tall.
References: Datasheet & 1040. Type L63 was first introduced in 1938.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
-
g1
-
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-8
9
7,700
2.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 02, 2015.
