MHL4

Sensibly equivalent to:
154V 164V 41MLF CV1038 CV3547 NR26 VR38
See also:
CV1038 short entry

Extras ▼



The MHL4 amplifier triode (mu = 20) was not much used in domestic radios because the MH4 (mu = 40) was better suited to the detector/first AF task. However, the MHL4 did see service in professional and military applications over many years until it was superseded by the L63, which had comparable characteristics.
The envelope carries the second Type designation of Z4027.
The MHL4 was marketed from about 1930. It was certainly a year or so behind the MH4.

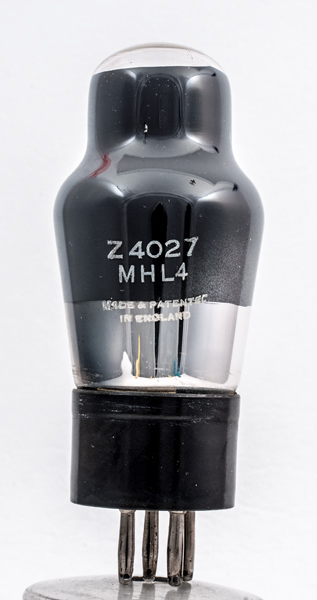

This sample carries the commercial brand of Osram in the paper label.
The classic envelope is 44 mm in diameter and, excluding the B5 base pins, is 97 mm tall.
References: Datasheet, 1040 & 1043. Type MHL4 was first introduced in 1929.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
4.0
1.0
250
-8
8.0
8,000
2.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 23, 2016.
