EF80

Sensibly equivalent to:
64SPT 6BX6 8D6 CV1376 Z152 Z719
See also:
The Construction of the EF80 - Television RF Valve Development - The Screen in an EF80 - Valves and their Habits - Valves for Bands III, IV & V - Pye B18T AC/DC Television Chassis - New Valve Assembly Method - Television Reception on Band V

Extras ▼



The EF80 internally screened pentode was a workhorse of the VHF TV receiver and was introduced in mid 1950 to replace the EF91. It was described by Mullard as: a high slope RF pentode and not a variable μ type. The EF85 was the variable μ counterpart to the EF80. The EF80 was much used for RF, intermediate frequency, and video amplification and all valve makers produced the reliable EF80 design.
The 'bog standard' TV of the later 1950s was full of EF80s (or equivalents). In those days all British TVs were monochrome, 405-line standard, with a typical video IF of 33 MHz. The EF80 worked well at 40 MHz and also gave adequate performance at up to 100 MHz. The EF80 was superseded in the 1960s by the higher slope frame grid EF184 the EF183 being the variable μ design.
The circuit designer is given maximum flexibility by having all electrodes brought to external pins. Many pentodes have g3, the suppressor grid, internally connected to the cathode.

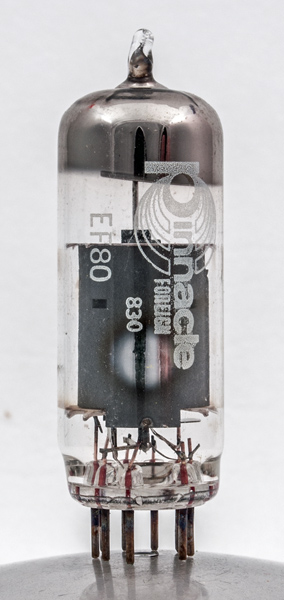

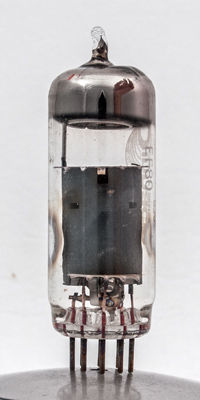

The solid outer screen obscures the inner structure. EF80s were made with both mesh and plain outer screens.
The thin glass tube envelope is 21 mm diameter and excluding the B9A base pins, is 59 mm tall.
References: Datasheet & 1040. Type EF80 was first introduced in 1950.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k
g1
k
h
h
s
a
g2
g3



Absolute Maximum Operating Conditions
Pentode
Va
Vs
Vg
mAa
mAs
ra
gm
170
170
-2
10
2.5
0.4M
7.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
